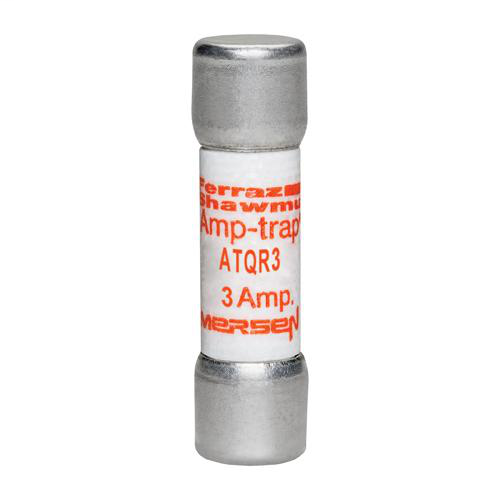

Ferraz Shawmut ATQR3 3 Amp 600 Volt Glass Melamine Laminated Class CC Rejection Time Delay Fuse

$5.33/ea

In Stock | 21 available at 2 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Time-delay for control transformer inrush loads without nuisance opening
Highly current-limiting for low peak let-thru current
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
High visibility orange label ensures instant brand recognition, and simplifies replacement
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching and high current limitation

UPC	78200190653
Product Description	ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
MDM Pkg GTiN	00782001906535
Length	1.5 in
Type	Time-Delay
Diameter	0.41 in
Terminal Type	Ferrule
Applications	For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General-Purpose Loads
Mounting Type	Clip
Weight	0.02 lb
Pkg Qty	10
Family Brand Name	Ferraz Shawmut
Class	CC
Insulation Material	GMG
Construction	Fiberglass
Tc Connection	Ferrule
Amperage	3 Amp
Blade Dimensions	10 x 38 mm
Interrupt Rating	200 kA
Terminal Material	Tin-Plated Copper
Sub Brand	Amp-Trap 2000
Rated Voltage AC	600 V
Rated Voltage DC	300 V
Fuse Class	Class CC
Voltage	null
