Ferraz Shawmut FSPIN1 Finger Safe Power Distribution Block Pin
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 9 to 15 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # FSPIN1
Crawford Part # 114161



  • UL Recognized Component Guide XCFR2, File E73571
  • CSA Certified: Class 6228, File 69363
  • IEC-947-7-1, 529, 68-2-6, CE Marked


  • Finger-safe protection: Fully insulated block ensures touch safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529
  • Compact modularity: Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels
  • Snap on DIN-rail mounting: Sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35mm DIN rail yielding lower installed costs
  • Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost
  • Available accessories: For multi-pole panel mounting, simply snap in pins for rigid fit. Cap plugs provide the ability to maintain touch safety on unused openings. Circuit identification markers simply snap into blocks to ID circuits. End anchors provide rigid end stops
  • Multiple wire ratings: Provide users more versatility by offering capability of using multiple conductors in #2 and 2/0 openings
  • AC & DC ratings: FSPDB1, 2, and 3 have been evaluated for use at 1500V (AC or DC) provided they are installed on DIN-rails only and with proper barriers and spacing between poles of opposite polarity
  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Short Circuit Rating Standalone: 10 kA
  • Short Circuit Rating Class Cc: 0 0
  • Short Circuit Rating Class G: 0 0
  • Short Circuit Rating Class J: 0 0
  • Short Circuit Rating Class L: 0 0
  • Short Circuit Rating Class Rk1: 0 0
  • Short Circuit Rating Class Rk5: 0 0
  • Short Circuit Rating Class T: 0 0
  • Ampere Rating Al: 0
  • Ampere Rating Cu: 0
  • Country Of Origin: MX
  • Product Line: FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks
  • Wire Insulation Rating: 60/75C
  • Wire Type: Solid/Stranded CU
  • Flammability Rating: 94 V-0
  • Hex Screw Size And Type Primary: 0
  • Number Of Openings Per Pole Primary: 0
  • Number Of Openings Per Pole Secondary: 0


UPC 78200131970

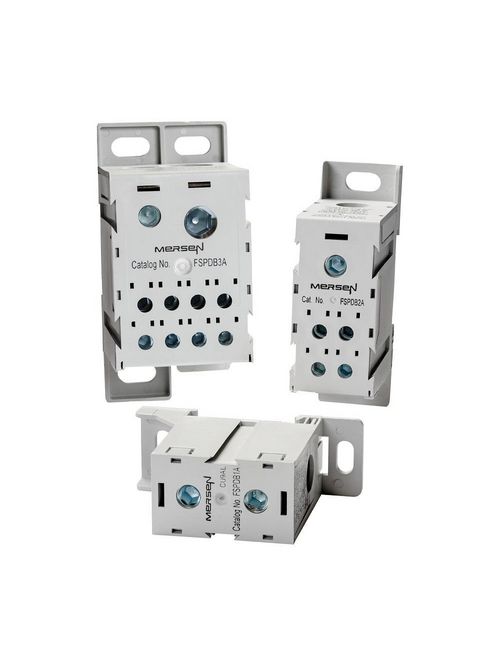

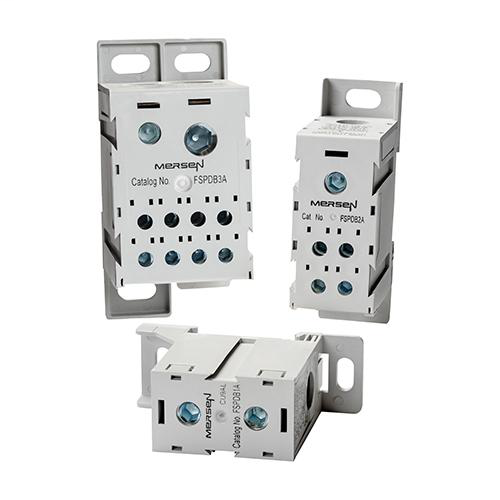

Product Description FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger safe protection is achieved using the FSPDBs and thus eliminates the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. And since they are modular, you can form any number of poles desired. If multi-pole panel mounting is desired, multiple-pole assembly pins are available. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.
MDM Pkg GTiN 00782001319700
Length 2.05 in
Width 0.14 in
Type Finger-Safe Power Distribution Blocks UL 1059
Applications Use to Form Multiple Pole FSPDB Block
Height 0.14 in
Weight 0.01 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Number of Poles 1 Pole
Used With 600 VAC 1-Pole Finger-Safe Power Distribution Blocks
Short Circuit Current Ratng 0 A
Voltage 600 VAC
Country of Origin Mexico
Max Operating Temperature 80 C
