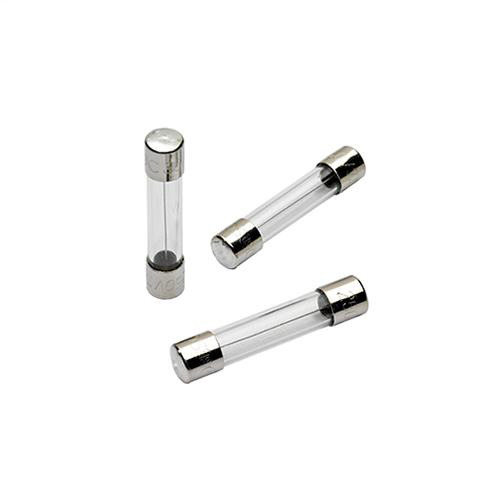

Ferraz Shawmut GGC30 1/4 x 1-1/4 Inch 30 Amp 32 Volt Fast Acting Electronic Fuse
$0.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GGC30
Crawford Part # 114214

Features

  • Glass body
  • Fast-acting
  • 1/4" x 1-1/4"

Applications

  • Electronic circuits

Approvals & Standards

  • 1/10A through 10A, 250VAC, UL Listed and CSA Certified
  • 12A and 15A, 125VAC, UL Listed and CSA Certified
  • 20A through 30A, 32VAC

Specifications

  • Rated voltage AC UL: 32 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Glass

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.25 in
  • Product Length: 1.25 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 0.052 lb
  • Sell Pack Width: 1.5 in
  • Sell Pack Length: 1.25 in
  • Sell Pack Height: 0.25 in

Categories

Overview

UPC 78200176081
Product Description Up to 250V, Fast Acting, Glass, 1/4" x 1 1/4"
MDM Pkg GTiN 00782001760816
Length 1.25 in
Type Fast Acting
Diameter 0.25 in
Terminal Type Ferrule
Applications For Electronic Circuits
Mounting Type Clip
Weight 0.01 lb
Pkg Qty 5
Family Brand Name Ferraz Shawmut
Insulation Material Glass
Construction Glass
Tc Connection Ferrule
Amperage 30 Amp
Blade Dimensions 1/4 x 1-1/4 in
Interrupt Rating 1 kA
Rated Voltage AC 32 V
Fuse Class Supplemental
Voltage null
