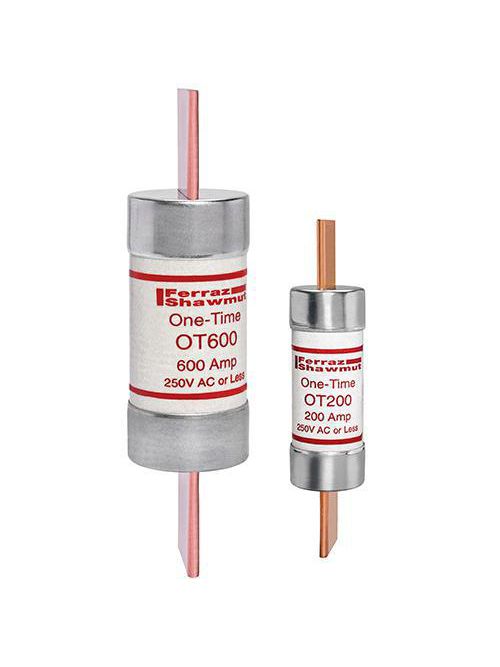

Ferraz Shawmut OT15 9/16 x 2 Inch 15 Amp 250 Volt Class K5 General Purpose Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2.62/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OT15
Crawford Part # 114263

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value

Applications

  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248

Specifications

  • Rated voltage AC UL: 250 V
  • Rated voltage DC UL: 250 V
  • Ampere Rating: 15 A
  • ROHS Compliant: Yes
  • Fuse Class: Class K5
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 50 kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Paper

Product Dimensions

  • Product Weight: 0.04 lb
  • Product Diameter: 0.56 in
  • Product Length: 2 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.42 lb
  • Sell Pack Width: 2.06 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 1.19 in

Overview

UPC 78200170011
Product Description One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
MDM Pkg GTiN 00782001700119
Length 2 in
Type North American Power Fuses
Diameter 0.56 in
Terminal Type Ferrule
Applications Feeders Resistive Heating Residential and Small Commercial Installations
Mounting Type Clip
Weight 0.04 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class K-5
Insulation Material Paper
Tc Connection Ferrule
Amperage 15 Amp
Interrupt Rating 50 kA
Terminal Material Copper
Rated Voltage AC 250 V
Rated Voltage DC 250 V
Fuse Class Class K5
Voltage 250 VAC
