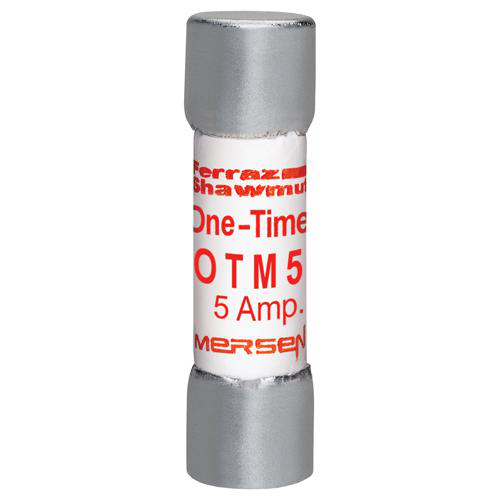

Ferraz Shawmut OTM5 13/32 x 1-1/2 Inch 5 Amp 250 Volt Fast Acting Midget Fuse
$2.13/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTM5
Crawford Part # 114278

Features

  • Low cost and fully rated for economy without compromise
  • Can be used with UltraSafeā„¢ fuse holders
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

  • Supplemental protection of circuits up to 250VAC and 10kA

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: Paper
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Ampere Rating: 5 A
  • Fuse Class: Midget
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 250 V

Approvals & Standards

  • UL Listed to standard 248-14, File E33925
  • CSA Certified to Standard C22.2 No. 248.14
  • Approvals & Standards

Overview

UPC 78200170505

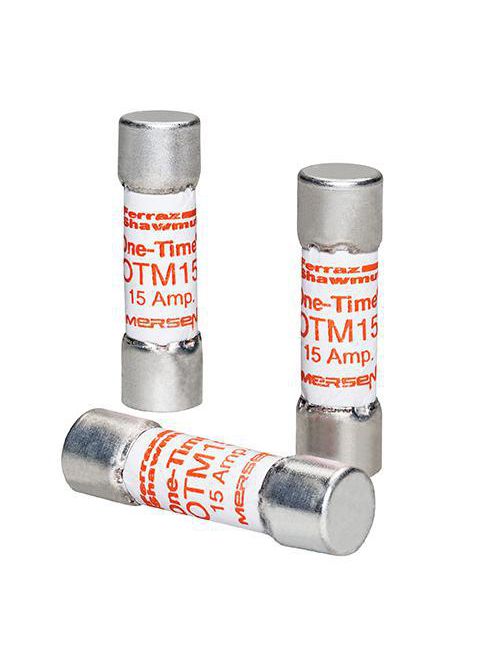

Product Description One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).
MDM Pkg GTiN 00782001705053
Length 1.5 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications For Supplemental Protection of Circuits up to 250 VAC and 10 kA
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class M
Insulation Material Paper
Tc Connection Ferrule
Amperage 5 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 10 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Fuse Class Midget
