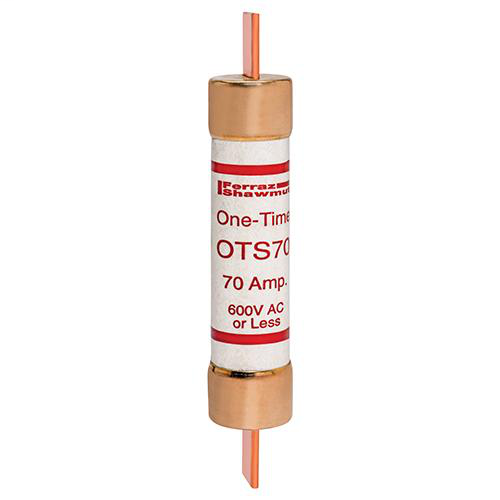

Ferraz Shawmut OTS70 1-5/16 x 7-7/8 Inch 70 Amp 600 Volt Class K5 General Purpose Fuse
$33.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTS70
Crawford Part # 114288

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value

Applications

  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Specifications

  • Sell Pack Height: 1.38 in
  • Product Weight: 0.55 lb
  • Product Diameter: 1.31 in
  • Product Length: 7.88 in
  • Mounting: Clip
  • Ampere Rating: 70 A
  • AC Max I.R./Breaking Capacity: I1: 50 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 2.89 lb
  • Sell Pack Width: 6.66 in
  • Sell Pack Length: 8 in
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 5 Each
  • Speed/Characteristic: Fast-Acting
  • Fuse Class: Class K5
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248
  • Approvals & Standards

Categories

Overview

UPC 78200170082
Product Description One-Time OTS general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OTS fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses.
MDM Pkg GTiN 00782001700829
Length 7.88 in
Type North American Power Fuses
Diameter 1.31 in
Terminal Type Blade
Applications Feeders Resistive Heating Residential and Small Commercial Installations
Mounting Type Clip
Weight 0.55 lb
Pkg Qty 5
Family Brand Name Ferraz Shawmut
Class K-5
Insulation Material PolyTube
Tc Connection Blade
Amperage 70 Amp
Interrupt Rating 50 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class K5
