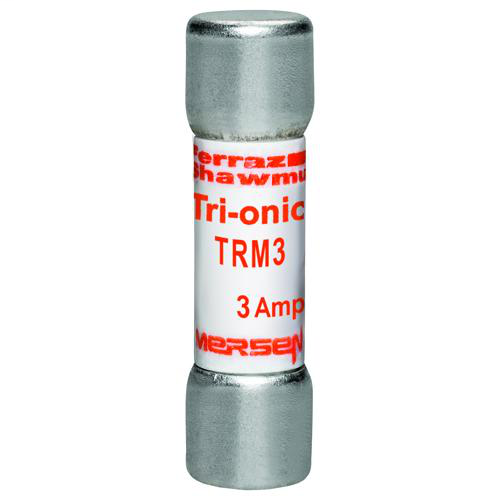

Ferraz Shawmut TRM3 13/32 x 1-1/2 Inch 3 Amp 250 Volt Time Delay Midget Fuse
Product image thumbnail 0
Product image thumbnail 1
$3.64/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # TRM3
Crawford Part # 114329

Features

  • Numerous ratings for a wide variety of applications
  • 250VAC rating in all sizes up to 30A
  • Time-delay for circuits with high inrush currrent
  • Can be used with UltraSafeTM fuse holders
  • 1 1/2" x 13/32" (10mm x 38mm) dimensions

Applications

  • Small motors
  • Small transformers
  • Lighting circuits
  • Control circuits

Approvals & Standards

  • UL listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 3 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200174336
Product Description Tri-Onic TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
MDM Pkg GTiN 00782001743369
Length 1.5 in
Type Time-Delay
Diameter 0.41 in
Terminal Type Ferrule
Applications For Supplemental Protection, Small Motors, Small Transformers, Lighting Circuits, Control Circuits
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class M
Insulation Material GMG
Tc Connection Ferrule
Amperage 3 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 10 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Fuse Class Midget
Voltage 250 VAC
