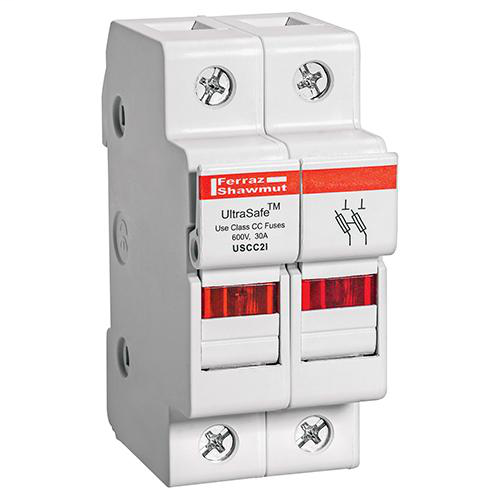

Ferraz Shawmut USCC2I 2-Pole 30 Amp 600 Volt Class CC Modular Fuse Holder
Product image thumbnail 0
Product image thumbnail 1
$26.79/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # USCC2I
Crawford Part # 114369

Features

  • IP20 Finger-Safe (touch safe)
  • Optional visual blown fuse Indicator lights
  • DIN-rail mounting
  • Compact footprint
  • Quick, tool-free, easy fuse change outs
  • USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M
  • USCC use with: ATDR, ATMR, ATQR
  • ATM, DCT, ATMR recommended for DC applications

Applications

  • All circuits up to 600 volts for motors, control circuits, transformers, etc…
  • DC circuits up to 1000VDC including photovoltaic applications
  • Non-load disconnect

Approvals & Standards

  • UL Listed to Standard 4248- 4 (class CC) and 4248-1 (midget), File E52283
  • UL Listed to standard 4248-18 (photovoltaic), File E347822
  • CSA Certified C22.2
  • IEC 60269-2-1 and 60947-3 Compliant (USM only)

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Class CC
  • Short Circuit Current Rating (SCCR): 200 kA
  • Fuse Type/Class: Class CC
  • Indication System: Yes
  • Indication System Type: LED
  • Number of Poles: 2-pole
  • Wiring range: Cu #6-14
  • Fuse Installation Method: Clip-in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 30 A
  • Installation Mounting: DIN Rail

Product Dimensions

  • Product Weight: 0.28 lb
  • Product Width: 1.38 in
  • Product Length: 3.07 in
  • Product Height: 2.32 in

Packaging Dimensions

  • Sell Pack Quantity: 6 Each
  • Sell Pack Weight: 1.76 lb
  • Sell Pack Width: 3.5 in
  • Sell Pack Length: 8.5 in
  • Sell Pack Height: 2.66 in

Overview

UPC 78200182989
Product Description Mersen UltraSafe Modular Fuse holders introduce a new level of safety for Class CC (USCC) and Midget 1-1/2" x 13/32" (USM) AC and DC rated fuses up to 30 amperes. UltraSafe holders qualify as Fingersafe under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multi-pole units can also be field assembled by ordering pin-tie handles. UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe holders with Class CC fuses chosen for Type 2 No Damage protection give one of the safest protection packages in the industry. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
MDM Pkg GTiN 00782001829896
Length 3.07 in
Width 1.38 in
Type UltraSafe
Connector Type Pressure Plate
Applications For Motors, Control Circuits, Transformers, etc.
Mounting Type DIN Rail
Height 2.32 in
Weight 0.28 lb
Fuse Type 10 x 38 mm Class CC
Pkg Qty 6
Family Brand Name Ferraz Shawmut
Class CC
Insulation Material GFPC
Tc Connection Pressure Plate
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 2 Pole
Indicator LED
Used With All Circuits (Including Branch-Circuits) up to 600 VAC/DC
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Short Circuit Current Ratng 200000 A
Fuse Class Class CC
Voltage 600 VAC
