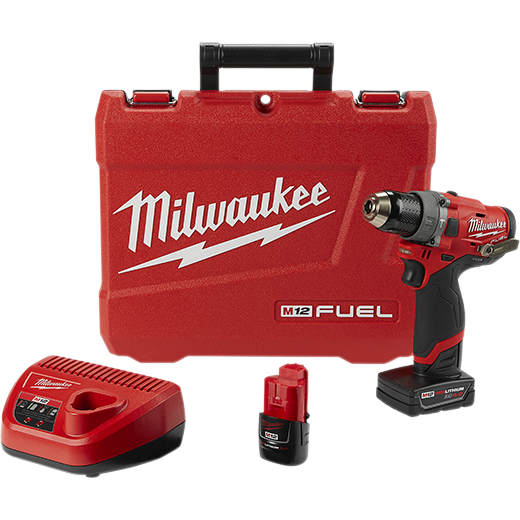

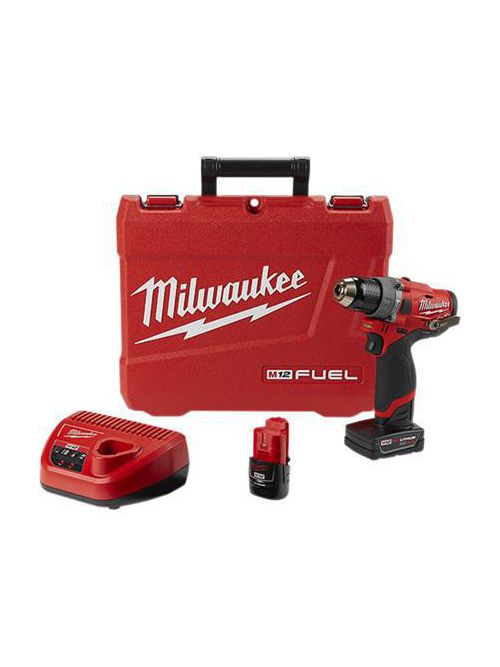

Milwaukee 2504-22 M12#8482; FUEL™ 1/2" Hammer Drill Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Electric
Mfg Catalog # 2504-22
Crawford Part # 682601


  • Most capable 12 V hammer drill with the power to perform a wide range of applications
  • Lightest weight in its class for tool belt portability and less fatigue in the work day
  • Most compact in its class for the best access in tight spaces
  • 1/2 in. all metal chuck for maximum grip and bit retention
  • E-clutch for consistent repeatability in driving applications
  • 1700 RPMs for faster drilling speeds
  • 350 in-lbs of peak torque


  • Powered Tool Power Source: Electric - Cordless
  • Drill Type: Hammer Drill
  • Cordless / Corded: Cordless
  • Impacts per Minute: 25500.0
  • Drill / Driver Maximum RPM: 1700
  • Maximum Torque (ft-lbs): 29.17
  • Impact Energy: 350 in-lbs.
  • Variable Speed: Yes
  • Number of Speeds: Variable
  • Chuck Size: 1/2 in
  • Chuck Design: Keyless
  • Length (in): 6.6
  • Width (in): 2.1
  • Color / Finish: Red/Black
  • Tool Handle Type: Pistol
  • Side Handle: No
  • Housing Material: Glass-Filled Nylon
  • Switch Type: Trigger
  • Lock-on Switch: No
  • Reverse: Yes
  • Integrated Light: Yes
  • Net Tool Weight (lbs): 2.8
  • Number of Batteries Required: 1
  • Number of Batteries Included: 2
  • Battery Composition: Lithium-Ion (Li-ion)
  • Battery Ampere-hour (Ah): 2.0
  • Battery Voltage (V): 12
  • Charger Included: Yes
  • CSA Certified: No
  • ETL Listed: Yes
  • UL Listed: Yes
  • Case Included: Yes
  • Package Contents: (1) Hammer Drill, (2) Batteries, (1) Battery Charger, (1) Belt Clip, (1) Carrying case


UPC 04524250901
Product Description The M12 FUEL hammer drill driver is the most capable, lightest weight, most compact tool in its class. The POWERSTATE brushless motor delivers the power to do a wide variety of applications at 1700 RPMs and 350 in-lbs of torque. Weighing only 2.3 lbs it is extremely portable, great for overhead applications, reduces fatigue throughout the day. At 6.6 in. in length this tool has the best access in tight spaces. Redlink plus intelligence protects the tool from overloads and overheating while ensuring maximum performance. Using REDLITHIUM 2.0 Ah compact and 4.0 Ah extended capacity battery packs they deliver more work per charge and more work over the life of the pack than competitive batteries.
MDM Pkg GTiN 00045242509010
Length 6.6 in
Width 2.1 in
Battery Type Lithium-Ion
Height 7.8 in
Weight 2.3 lb
Family Brand Name Milwaukee
Chuck Size 1/2 in
Power Source Cordless
Sub Brand M12 Fuel
Color Red
Type Cordless, Compact
Handle Type T-Handle
Chuck Type Keyless
Blade Dimensions 6.6 in L x 2.1 in W x 7.8 in H
Torque Rating 350 in-lb
Voltage 12 Volt
Net Weight 2.8 lb
