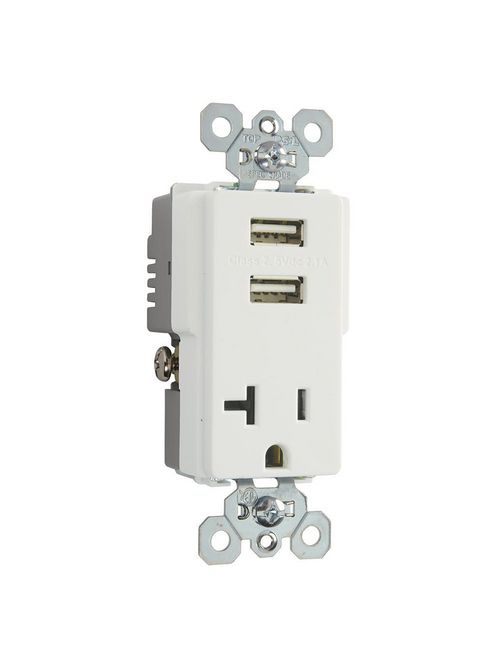

Pass & Seymour TR5361USB-W 20 Amp 125 VAC 2-Pole 3-Wire White Decorator USB Charger Receptacle
Product image thumbnail 0
Product image thumbnail 1
$31.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # TR5361USB-W
Crawford Part # 341871

Features

  • 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.
  • Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.
  • Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code® Tamper-Resistant requirements.
  • Stainless steel auto-ground clip assures positive ground.
  • Zinc-plated ground terminal screw
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: White
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42 & No. 223
  • CSA Standard: Yes
  • ETL Listing No: 4001804
  • ETL Listed: Yes
  • Federal Spec: Yes
  • UL Listing No: Complies with test requirements UL498, UL1310
  • UL Standard: Yes

Dimensions

  • Depth (US): 1.31"
  • Height (US): 4.18"
  • Width (US): 1.60"

Technical Information

  • Amps: 15A

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500702895
Product Description Designed for commercial markets with strength and durability in mind, this combination USB charger receptacle features 2.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
MDM Pkg GTiN 00785007028959
Width 1.60 in
Size 1.31" (D) x 1.60" (W) x 4.18" (H)
Color White
Type Tamper-Resistant USB Single Receptacle
Material Thermoplastic
Conductor Size 14-10 AWG
Applications For Commercial Markets
Mounting Type Box, Screw
Depth 1.31 in
Height 4.18 in
Country of Origin China
Style Decorator
Wire Size 14-10 AWG
Temperature Rating -40 to 60 C
Family Brand Name Pass & Seymour
Buy American Compliant No
Tc Connection Side & Back Wired
Amperage 15 Amp
Dielectric Strength Withstands 2000V minimum
Blade Dimensions 1.60 in W x 1.31 in D x 4.81 in H
Number of Poles 2 Pole
Number of Wires 3
Outlet Type Tamper Resistant
Sub Brand Pass & Seymour
Voltage 125 Volt, 2000 Volt Dielectric Withstand
