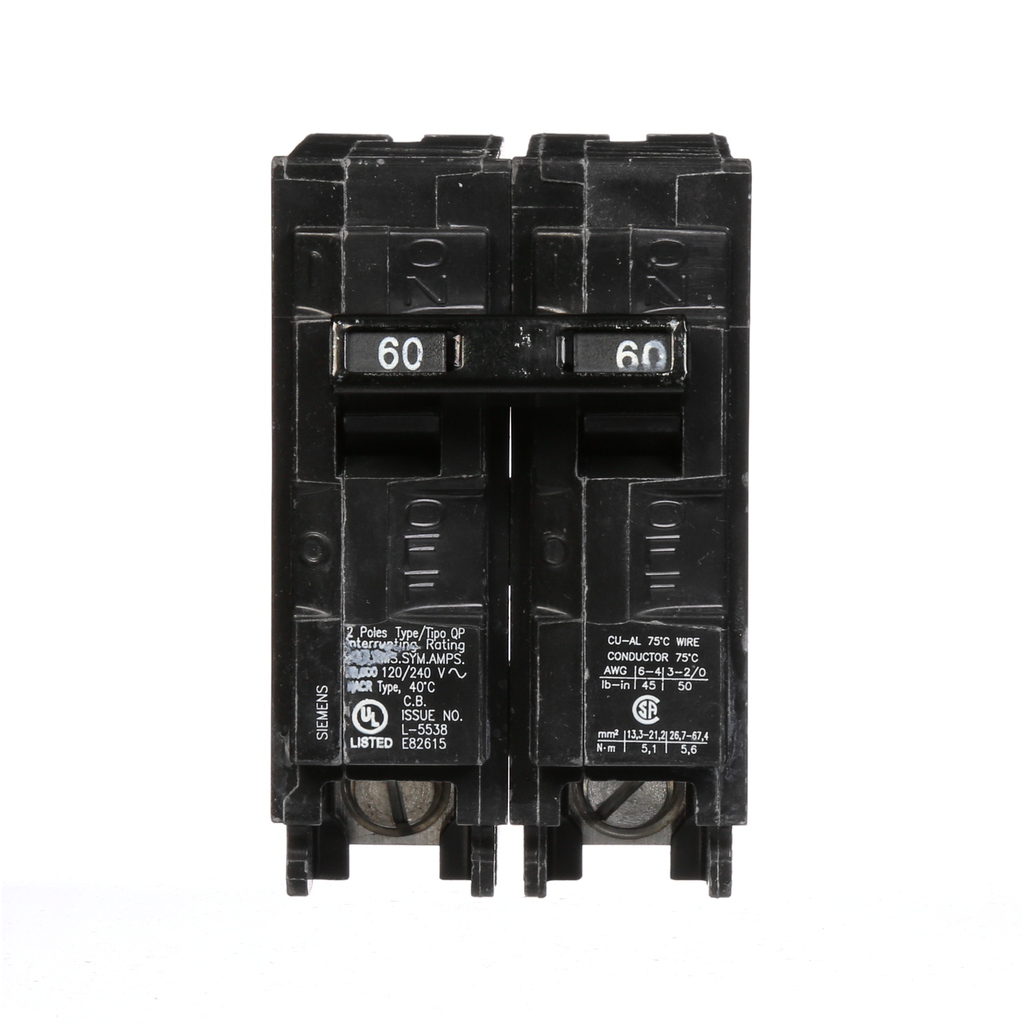

Siemens Industry Q260 2-Pole 120/240 VAC 60 Amp 10 kA Plug-In Common Trip Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
$12.57/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # Q260
Crawford Part # 116

Features

  • 2-pole, 60 Amp, 120-Volt/240-Volt type QP circuit breaker
  • 10,000 AIC interrupting rating
  • Siemens type QP circuit breakers provide easy plug-in connections in Siemens enclosures and the time saving insta-wire feature
  • Compatible with Siemens PL and ES series load centers
  • Use for overload and short-circuit protection of your electrical system
  • Thermal-magnetic

Specifications

  • Standard: UL LISTED / CSA / NOM CERTIFIED
  • Continuous current rated value: 60 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Voltage between phase and phase rated value: 240 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: ELECTRICAL DISTRIBUTION
  • Number of poles: 2
  • Design of the product: QP
  • Size of the circuit-breaker: QP (125A)
  • Design of the overload release: THERMAL - MAGNETIC
  • Height [in]: 3.12 in
  • Width [in]: 2 in
  • Depth [in]: 3 in
  • Product feature: 10kA INTERRUPT
  • Type of electrical connection: PLUG-IN
  • Product brand name: SIEMENS
  • Type of connectable conductor cross-sections at AWG conductors: 8 - 4AWG (CU/AL)
  • Type of mounting panel: LOADCENTER

Overview

UPC 78364314865
Product Description Molded case circuit plug-in breakers for panelboard mounting with insta-wire in 3 types of tripping speed Q=10KA, QH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 208Yvac.
MDM Pkg GTiN 00783643148659
Length 3 in
Width 2 in
Operating Temperature N/A
Voltage 120/240 Volt
Type QP/MP
Applications Electrical Distribution
Depth 3 in
Height 3.12 in
Connection Type Plug-In
Family Brand Name Siemens
Frame QP(125A)
Tc Connection PLUG-IN
Actuator N/A
Blade Dimensions 3 in L x 3 in W x 2 in H
Trip Type Thermal Magnetic
Number of Poles 2
Load Rating N/A
Interrupt Rating 10 kA
Enclosure N/A
Trip Range Thermal Magnetic
Sub Brand N/A
Conductor Size 8-4AWG(CU/AL)
