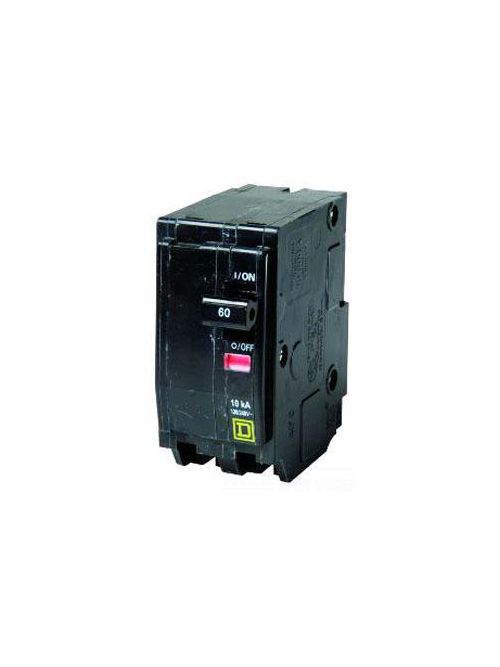

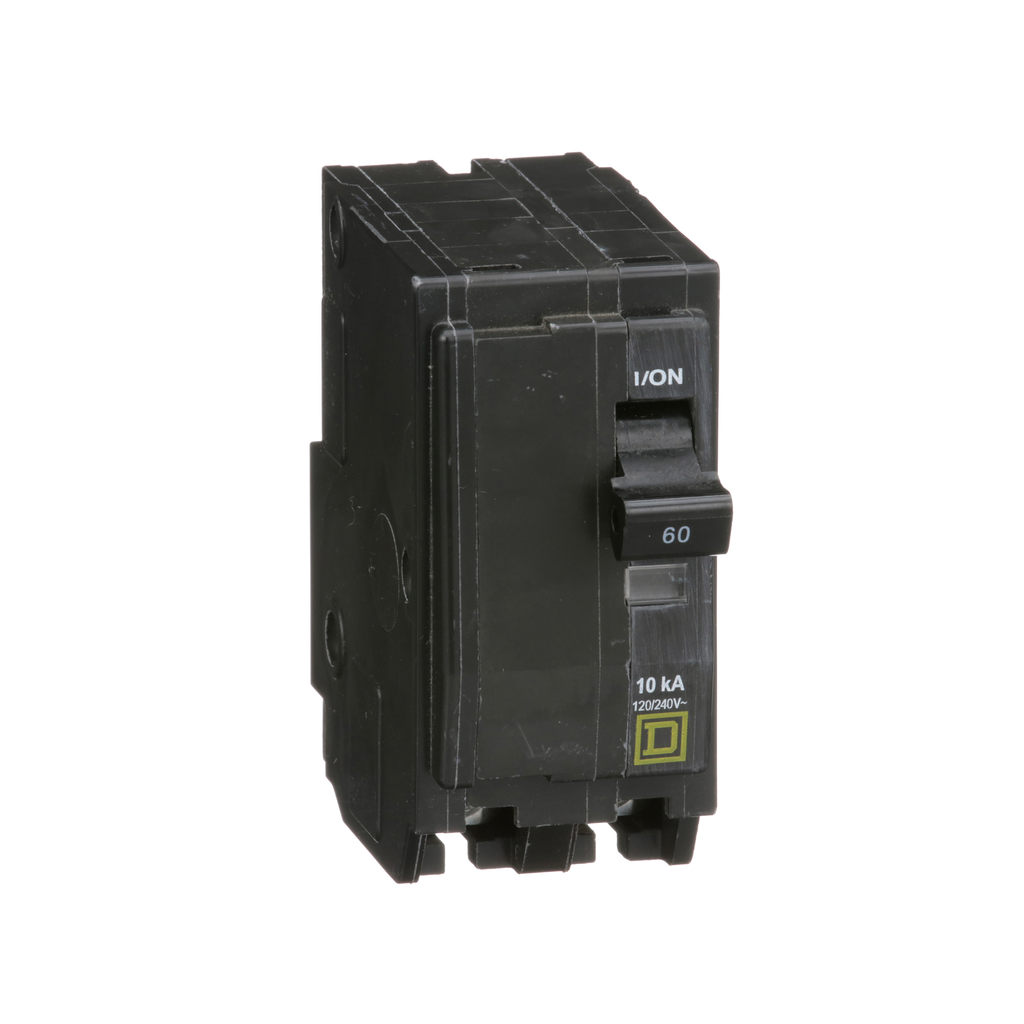

Square D QO260 120/240 Volt 60 Amp Miniature Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$69.95/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Square-D / Schneider
Mfg Catalog # QO260
Crawford Part # 117

Specifications

Main

  • Product: Miniature circuit-breaker
  • Range: QO
  • Current Rating: 60 A
  • Voltage Rating: 120/240 V AC || 120 V AC || 48 V DC
  • Mounting Type: Plug-in
  • Number Of Poles: 2P
  • Circuit Breaker Type: Standard
  • Ratings: HACR rated
  • Electrical Connection: Box lugs

Complementary

  • Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Number Of Panel Spaces: 2
  • Wire Size: AWG 8...AWG 2 copper or aluminium
  • Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) AWG 8...AWG 2)
  • Height: 3.12 in (79.25 mm)
  • Depth: 2.91 in (73.91 mm)
  • Width: 1.5 in (38.10 mm)

Environment

  • Certifications: UL Listed || CSA
  • Ambient Rating: 104 °F (40 °C)

Ordering And Shipping Details

  • Category: 00004 - QO,QOT 10-30A 1P;10-60A 2P
  • Discount Schedule: DE2A
  • GTIN: 00785901400561
  • Nbr. Of Units In Pkg.: 5
  • Returnability: Yes
  • Country Of Origin: MX

Offer Sustainability

  • Green Premium Status: Green Premium product
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes
  • Halogen Content Performance: Halogen free product

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590140056
Product Description QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 60 A, 120/240 V, and 2 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
MDM Pkg GTiN 00785901400561
Length 2.91 in
Warranty Length 18 mth
Voltage 120 Volt
Type Miniature circuit-breaker
Applications HACR rated
Mounting Type Plug-in
Depth 2.91 in
Country of Origin Mexico
Family Brand Name Square D by Schneider Electric
Tc Connection Box lugs
Short Circuit Current 5 kA
Interrupt Rating 10 kA 120/240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz; 5 kA 48 V DC
Sub Brand QO
CA Prop65 Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Width 1.5 in
Operating Temperature 40 AC
Height 3.12 in
Circuit Breaker Type Standard
Current 60 A
Number of Poles 2 Pole
Wire Size AWG 8...AWG 2 copper or aluminium
