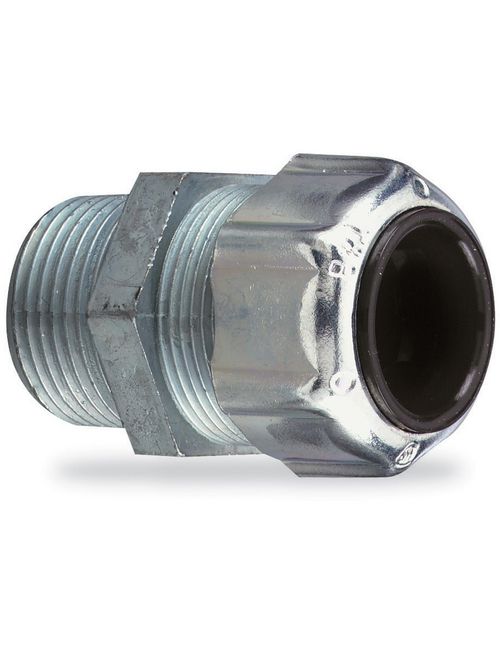

Thomas & Betts 2558 1-1/4 Inch Size .880 - 1.065 Inch Cord Range Connector
Product image thumbnail 0
Product image thumbnail 1
$3,020.39/c (100 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # 2558
Crawford Part # 228420

Specifications

Ordering

  • EAN: 5414363101642
  • Customs Tariff Number: 7907002000

Dimensions

  • Product Net Weight: .53 lb240.363 g

Container Information

  • Package Level 1 Units: 5 piece
  • Package Level 1 Width: 4.5 in114 mm
  • Package Level 1 Height: 3 in76 mm
  • Package Level 1 Depth / Length: 6 in152 mm
  • Package Level 2 Units: 50 piece
  • Package Level 2 Width: 13 in330 mm
  • Package Level 2 Height: 4 in102 mm
  • Package Level 2 Depth / Length: 24.1 in612 mm

Additional Information

  • Application: Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by NEC 501-4(B).
  • Brand / Label: T&B
  • Color: Metallic
  • Material: Zinc Die Cast
  • Number of Batteries: 0
  • Product Name: ZINC STRAIN RELIEF FITTING
  • Product Type: Strain Relief Cord Connectors-Straight
  • Size: 1-1/4 Inch
  • Special Functions: Meets Coast Guard CG293
  • Standards: UL E13938, CSA
  • Temperature Range: 105 °C
  • UPC: 786210025582

Classifications

  • ETIM 6: EC000441 - Cable screw gland
  • ETIM 7: EC000441 - Cable gland
  • UNSPSC: 39121431
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4601 >> Cable gland connector

Overview

UPC 78621002558
Product Description Liquidtight Strain Relief Cord Connector, 1-1/4 Inch, Straight, Cord Range 0.880 to 1.065 Inch, Die Cast Zinc
MDM Pkg GTiN 05414363101642
Size 1-1/4 in
Type Straight
Material Die-Cast Zinc
Conductor Size 0.88 - 1.065 in
Applications Suitable for use in Hazardous Locations where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
Trade Size 1-1/4 Inch
Thread Length 20.6 mm
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Tc Connection NPT
Color Metallic
Standard CSA,UL E13938
