Square D 9070TF50D5 50 VA 600 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Manufacturer: Schneider / Square-D | Catalog # 9070TF50D5 | Crawford Part # 161804
$184.85 /ea
ea
Log in or register to view your price, purchase history, and more!

Contact your sales rep for availability

COURTNEY WILLIAMS

courtney.williams@crawfordelectricsupply.com

CA Prop65 Warning CA Prop65 Warning Catalog Page Specification Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

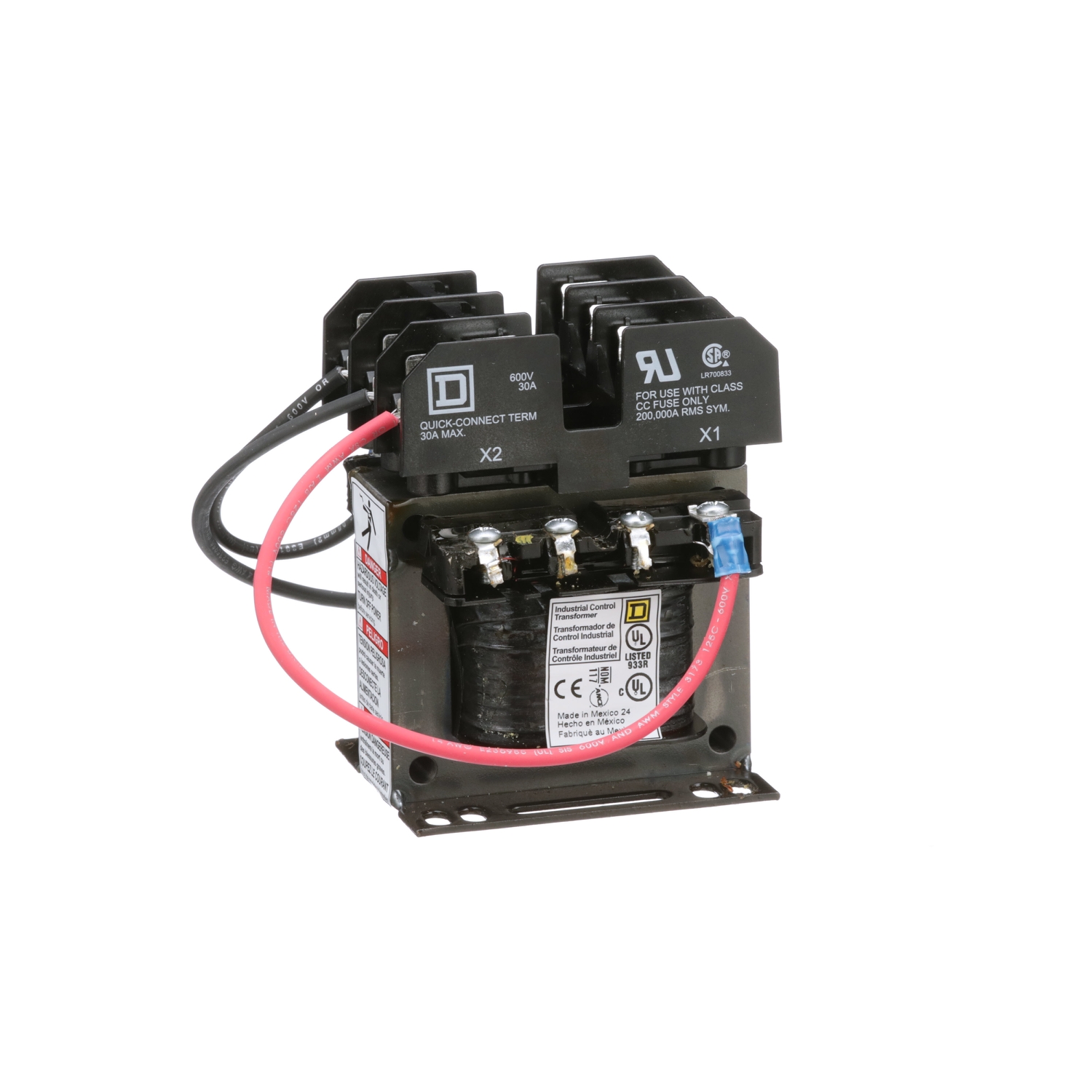

The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 50VA transformer designed for 600VAC primary with a 120VAC secondary. (The unit also supports 575VAC to 115VAC and 550VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.

Technical Information

Applications
DEVELOP TO HELP CUSTOMERS COMPLY WITH UL STANDARD 508 AND NEC 450
Enclosure
OPEN
Fuse Type
38 mm
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
50 VA;50 VA
Primary Voltage
110 V
Secondary Voltage
120 V
Size
1 1/2 in
Tc Connection
SCREW CLAMP
Temperature Rating
55 DEGREES C
Temperature Rise
55 degrees C
Type
TF
Voltage
110 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901845676
MDM Pkg GTiN
00785901845676
Product UPC
78590184567

Dimensions

Depth
3.09 Inch
Height
4 Inch
Warranty Length
18 mth
Width
3 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
Mexico
Features
  • Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays
  • A stacked fuse block maintains Type T's small footprint and features while providing overcurrent protection
  • This Type TF single phase 50VA transformer is designed for 600VAC primary with a 120VAC secondary
  • These transformers carry the cUL and UL labels
  • Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • 9070SF41A
  • 9070FP1
  • 9070FSC1
  • 9070FB3A
  • 9070FB2A
