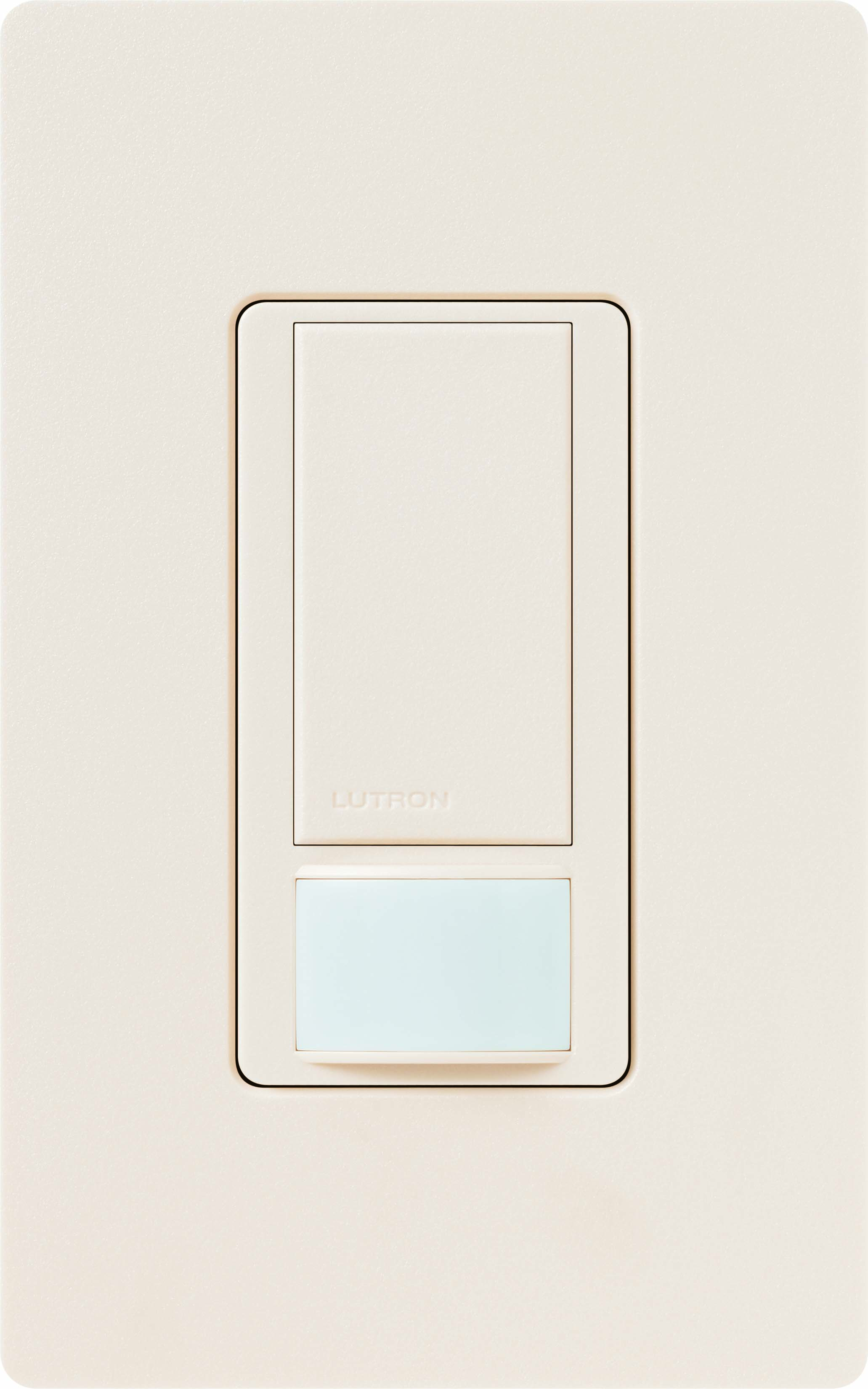

Product image for LUT MS-OPS2-ES OBS MAR 22 Maestro 2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LUT MS-OPS2-ES OBS MAR 22 Maestro 2

Manufacturer: Lutron | Catalog # MS-OPS2-ES | Crawford Part # 386667
$48.59 /ea
ea
Log in or register to view your price, purchase history, and more!

Contact your sales rep for availability

COURTNEY WILLIAMS

courtney.williams@crawfordelectricsupply.com

Specification Sheet
2A lighting, XCT PIR sensor, single pole, 120V

Technical Information

Amperage
2 Amp
Applications
Lighting Control
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Operating Temperature
0 to 40 degrees C
Power Supply
120 V
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Standard
CUL,NOM,UL
Type
Single Circuit
Voltage
120 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557982627
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
MDM Pkg GTiN
00027557982627
Product UPC
02755798262

Certifications and Compliance

Country of Origin
China
Standards and Certifications
  • cUL
  • CUL
  • UL
  • NOM
Features
  • Combines a Maestro switch with a passive infrared occupancy sensor
  • Detects the heat from occupants moving within an area to determine whether the space is occupied
  • Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
  • Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • Ground wire required.
